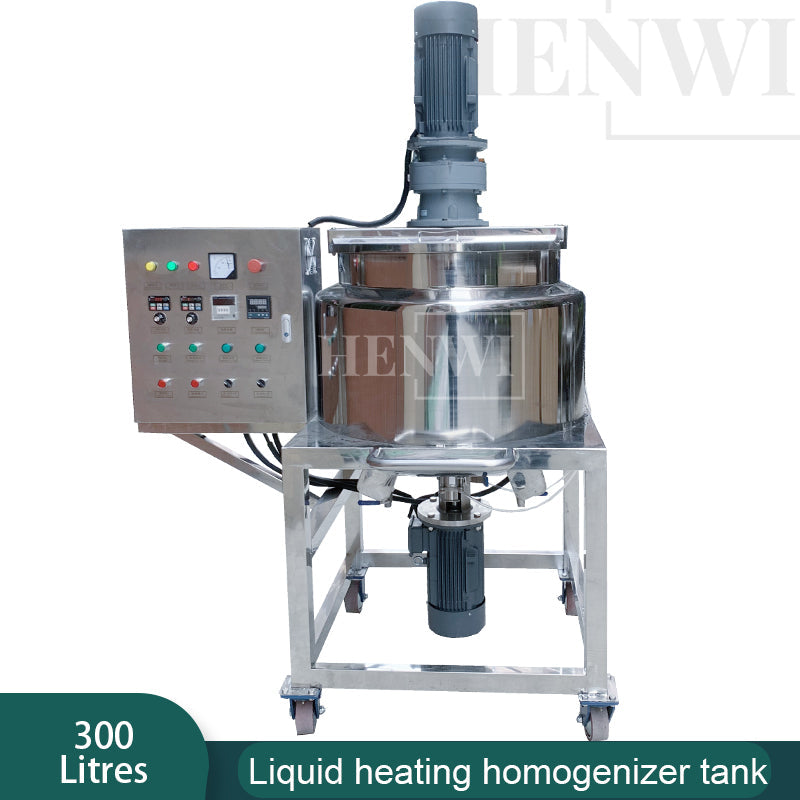

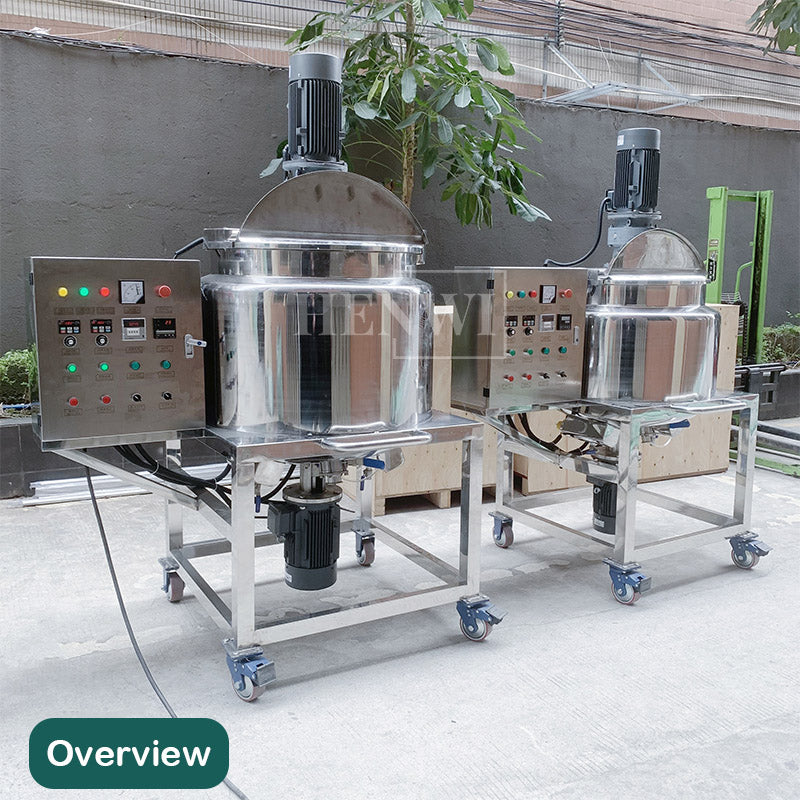

300L Movable Liquid Heating Homogenizing Mixer

Name: 300L Movable Liquid Heating Homogenizing Mixer
Brand: Foshan Henwi Technology Co.,Ltd
Price: 4500.00 USD
Availability: InStock

$4,500.00 USD

Sale Sold out

Quantity

Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, etc.

Application

Parameter

Model: HWHM-MT-300L

Working capacity: 300 Liters

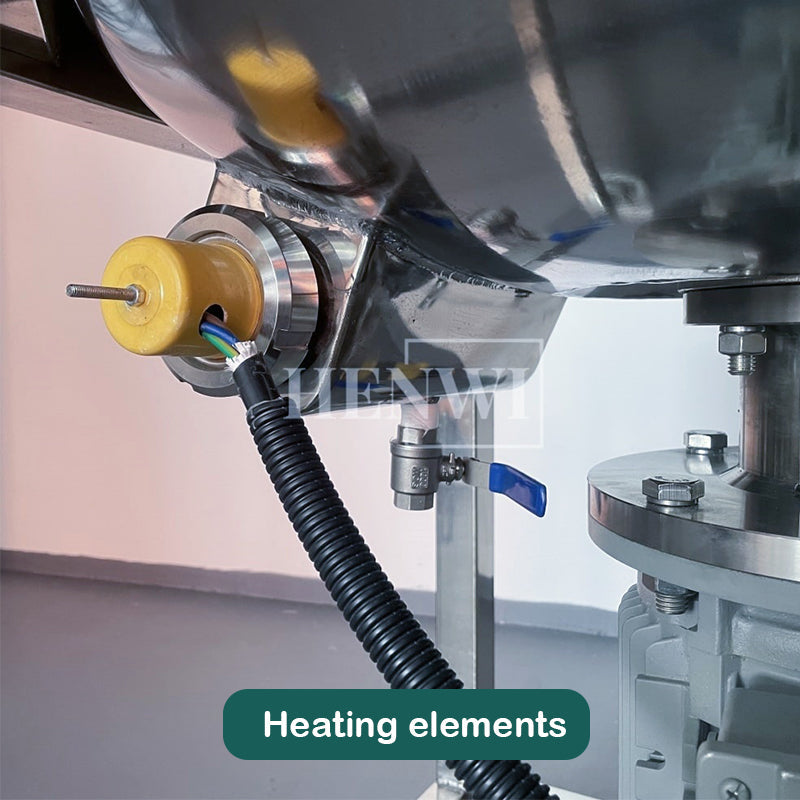

Heating method: Electric 27KW

Mixing type: Upper frame oar scraper mixer

Mixing motor power: 2.2KW, Siemens motor

Mixing frequency inverter: 2.2KW

Mixing speed: 0-65rpm

Homogenizer type: Bottom homogenizer

Homogenizer power: 4KW, Siemens motor

Homogenizer frequency inverter: 4KW

Homogenizer speed: 0-3000rpm(50Hz)/0-3600rpm(60Hz)

Control method: Button control

Frequency inverter: Delta

Electrical components: Delixi

Jacket: Double jacket,3 layers

Tank's materials: Inner layer 4mm/SUS316, Middle layer 3mm/SUS304, Outer layer 2mm/SUS304

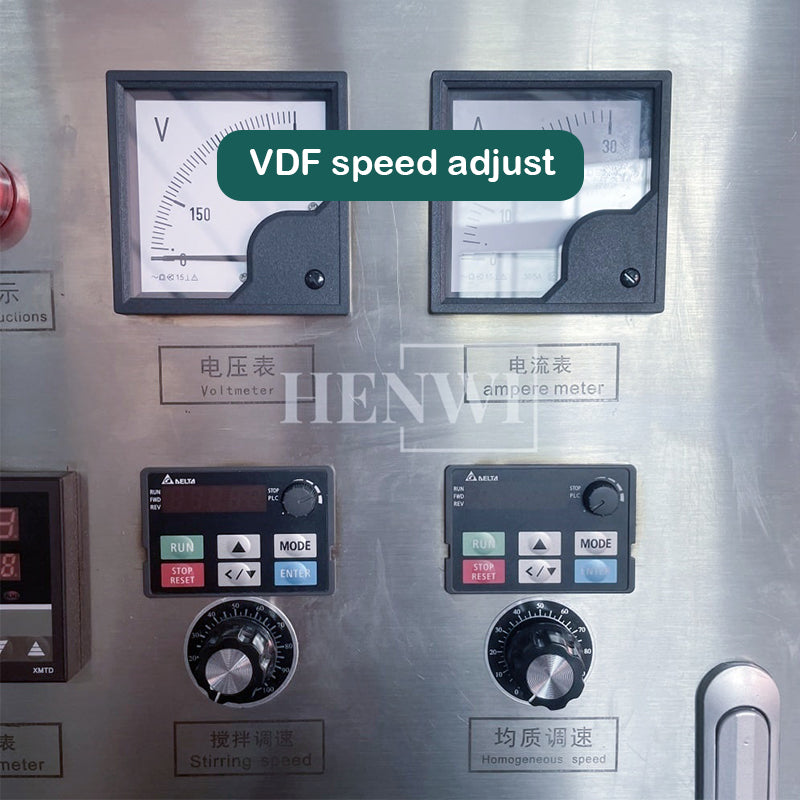

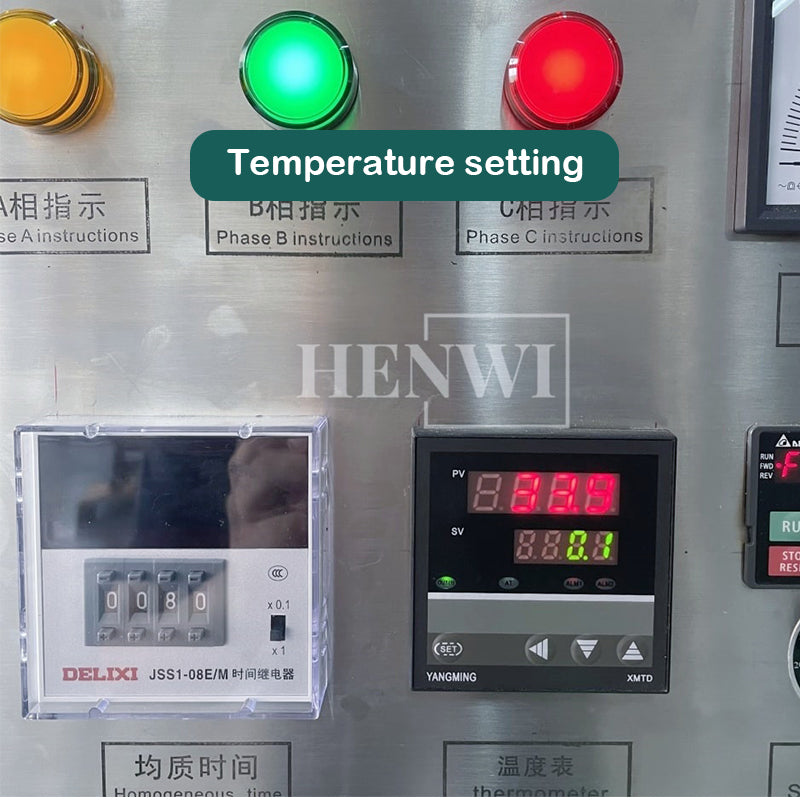

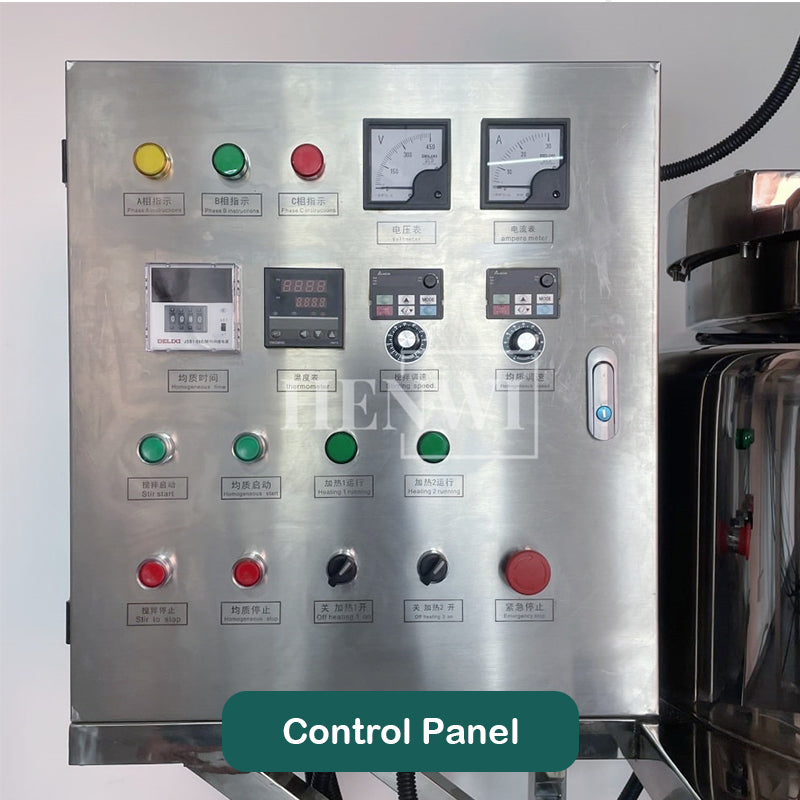

Control Panel

Simple and clear operation buttons, with notes in English or customized language required by customers. Contains voltage, current, functions switch, working indicator light, timer, speed regulator and emergency stop.

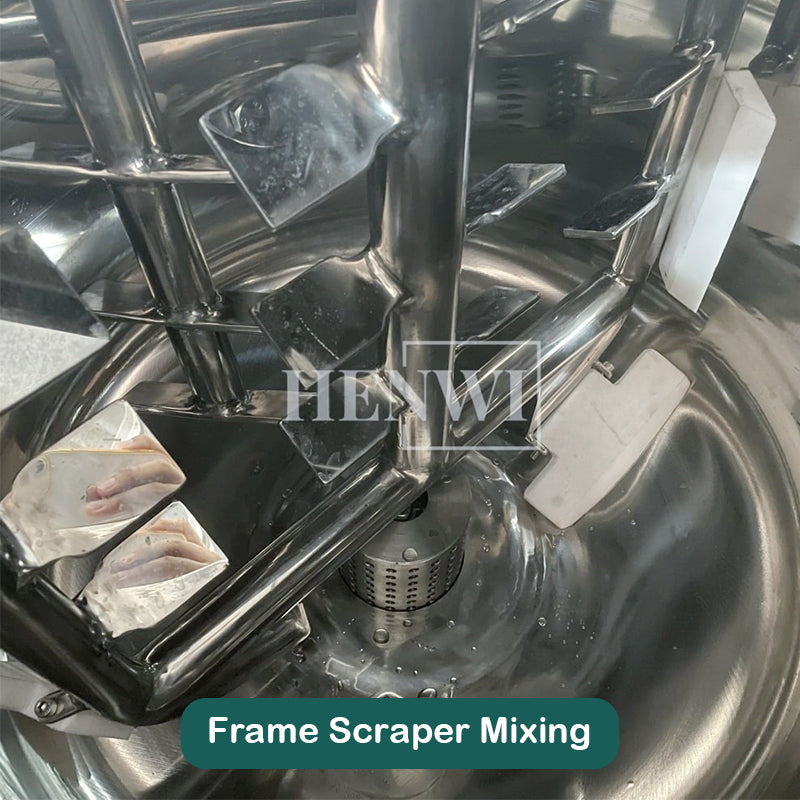

Frame Scraper Mixing

The frame-type scraper mixer can effectively mix the materials stuck on the wall. The powerful motor can mix the materials up and down. It is equipped with a frequency converter and a reducer. The stirring speed can be adjusted from 0 to 65 rpm.

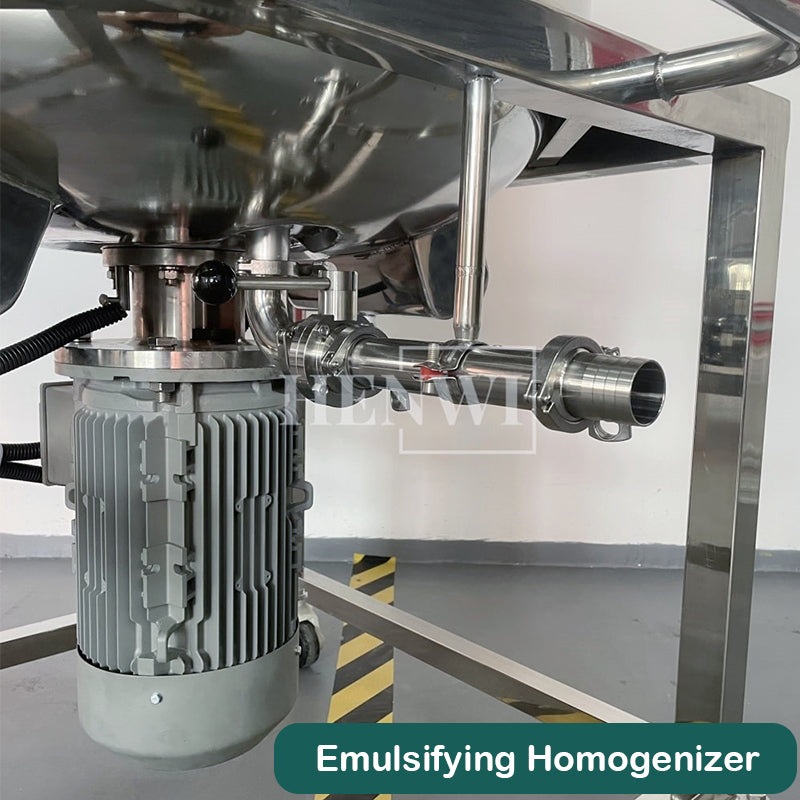

Emulsifying Homogenizer

The high shear speed of 3000 rpm makes the material fully emulsified in the gap between the stator and the rotor, so that the oil phase and the water phase are fully mixed, and the Emulsifying Fineness <0.2um is obtained to obtain a stable emulsion.

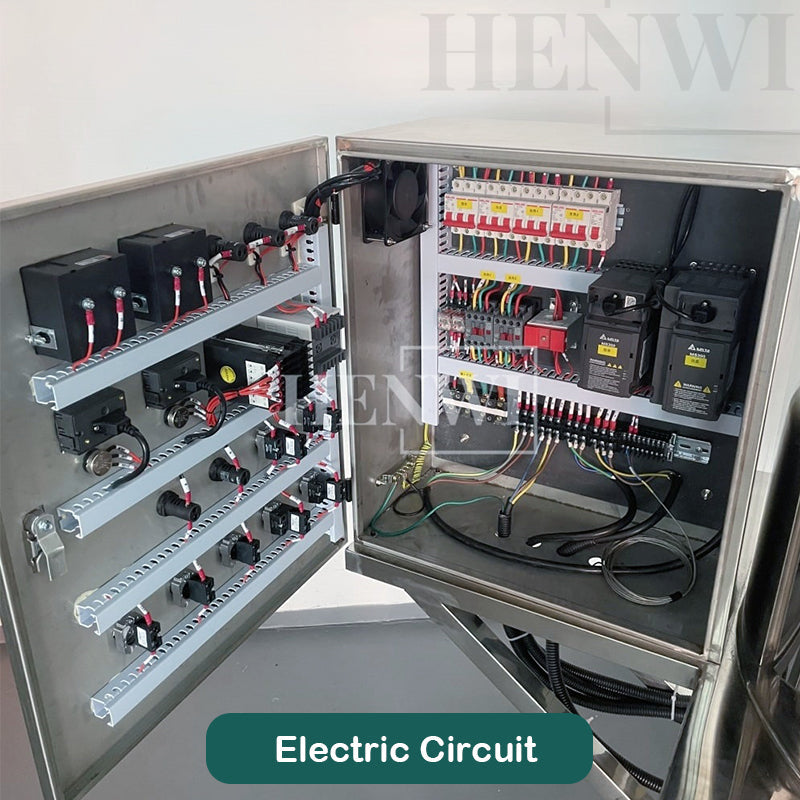

Electrical box

Neat wiring helps reduce issues such as interference, crossovers, and short circuits between wires, improving the reliability and stability of the machine, and reducing the risk of circuit failures and safety incidents. It facilitates maintenance personnel in identifying and locating faults, enabling quick repairs and replacements.
